IP65 Waterproof Distribution Box for a Residential Pool Pump Installation

In May 2026, a residential swimming pool contractor in Brisbane, Australia, required a compact outdoor distribution box for the electrical protection devices serving a pool pump and filtration system.

The pump equipment was installed beside an exterior wall, close to the swimming pool and garden area. This location provided convenient access to the filtration pipework but also exposed the electrical installation to humidity, airborne dust, cleaning splash and seasonal outdoor temperatures.

A BOWO HT-12 IP65 waterproof distribution box was selected to provide an organized and accessible enclosure for the DIN-rail circuit protection devices.

The contractor needed an outdoor electrical enclosure that could be installed close to the pool pump without obstructing the existing filtration pipes, valves or maintenance area.

The main project requirements included:

• Protection against outdoor dust and water splash
• Space for multiple DIN-rail circuit protection devices
• Clear visibility of breaker positions
• Compact wall-mounted installation
• Bottom cable entry toward the pump equipment
• Easy access for future inspection and maintenance
• Separation of electrical components from the pump and pipework

The available mounting area was limited because the pump, filtration pipes and garden landscaping had already been installed. The enclosure therefore needed to provide sufficient internal capacity without occupying excessive wall space.

The contractor selected a BOWO HT-12 waterproof electrical distribution box for the pool equipment circuit.

The enclosure combines a durable body, transparent protective cover and internal DIN rail in a compact wall-mounted structure. The internal rail provides an organized location for modular circuit breakers and other compatible electrical protection components.

Transparent Protective Cover

The transparent cover allows the breaker positions to be checked without opening the enclosure during routine pool maintenance.

This gives the property owner and service technician a quick visual indication of the circuit status while helping keep the internal electrical components protected during normal operation.

Compact DIN-Rail Layout

The internal DIN rail keeps the circuit protection devices aligned in a single, accessible row.

This arrangement makes the internal layout easier to inspect and service than separate breakers, terminals or cable joints installed around the pump equipment.

Outdoor Wall Mounting

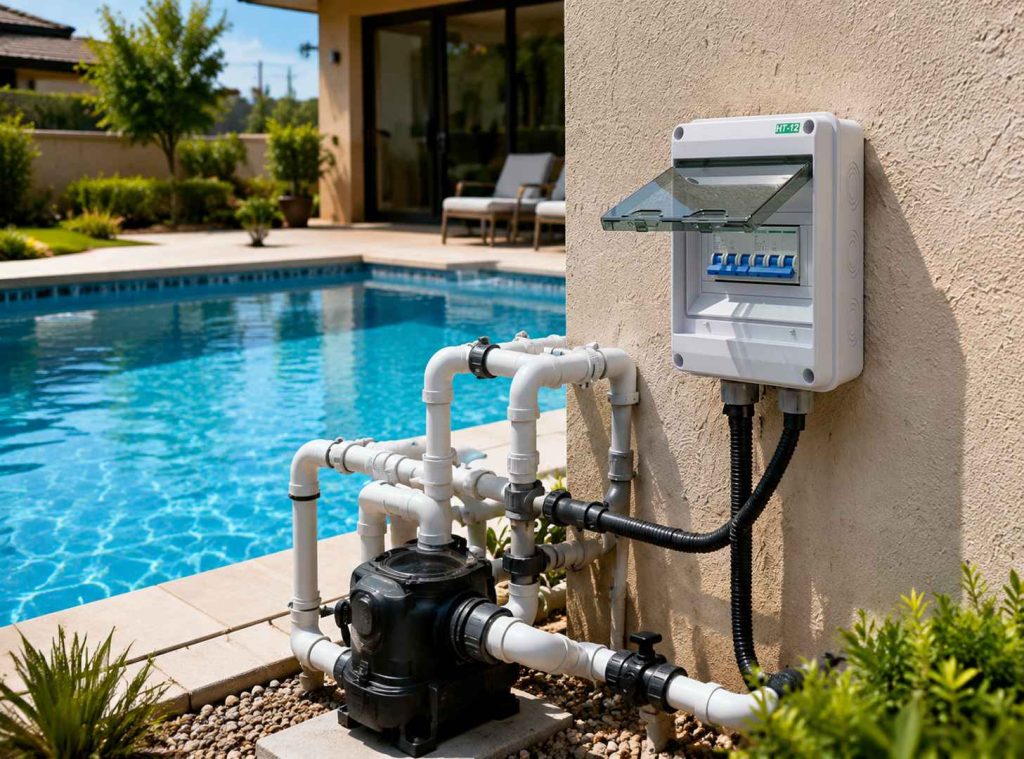

The HT-12 box was installed vertically on the exterior wall above the pump and filtration pipework.

The elevated position keeps the enclosure away from the pump base, surrounding gravel and low-level water accumulation while maintaining convenient access for electrical inspection.

1. Mounting Position Confirmed

The installer selected a flat wall area above the pool pump with sufficient clearance for opening the transparent cover and servicing the internal devices.

The mounting position also avoided interference with the nearby valves, pipe connections and pump housing.

2. Enclosure Secured to the Wall

The distribution box was mounted in a vertical orientation using the designated fixing positions.

The installer checked that the enclosure was level and securely supported before completing the internal wiring and external conduit connections.

3. DIN-Rail Devices Installed

The required circuit protection devices were arranged on the internal DIN rail.

The modular layout provided a clear separation between the individual pool equipment circuits and left space for wiring, cable bending and terminal access.

4. Bottom Cable Entries Prepared

The incoming and outgoing cables were routed through the lower section of the enclosure.

Bottom entry reduced the direct exposure of the cable openings to rain and poolside cleaning splash while providing a short cable route toward the pump equipment.

5. Protective Conduits Connected

Flexible protective conduits were installed between the distribution box and the pool equipment area.

The conduits organize the cable route and provide additional mechanical protection where the wiring passes close to the pipework, valves and pump assembly.

6. Final Inspection Completed

After wiring, the installer checked the enclosure closure, cable-entry fittings, conduit connections, breaker positions and maintenance clearance.

The transparent cover remained fully accessible, and the electrical enclosure did not obstruct routine pump or filtration-system servicing.

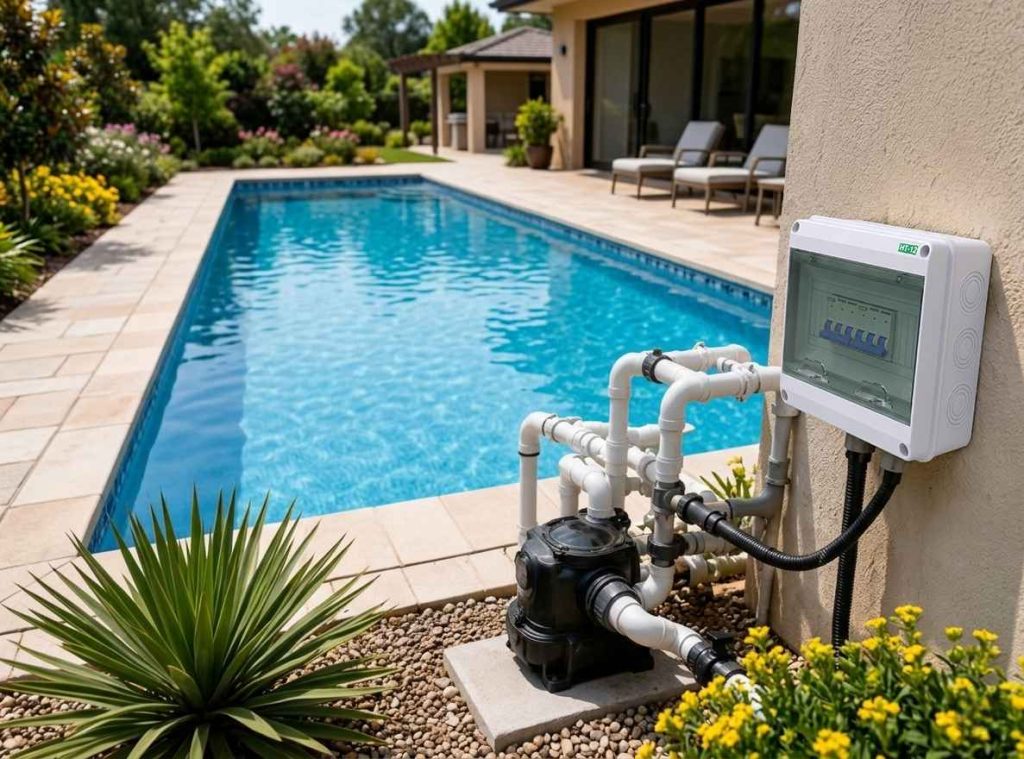

The completed installation provides a centralized electrical protection point for the residential swimming pool pump system.

The circuit protection devices are housed above the mechanical equipment instead of being exposed beside the pump and filtration pipes. The wall-mounted position improves accessibility while separating electrical inspection from routine pump maintenance.

The transparent cover allows breaker positions to be viewed quickly, and the bottom-entry conduit arrangement keeps the cable routes organized between the enclosure and connected equipment.

The finished layout is compact, practical and suitable for the limited poolside service area.

• Centralized circuit protection: DIN-rail devices are installed inside one organized enclosure.
• Improved environmental protection: The IP65 enclosure helps protect internal devices from dust and outdoor water splash.
• Fast visual inspection: The transparent cover allows breaker positions to be checked without immediately opening the box.
• Better maintenance access: Elevated wall mounting keeps the enclosure clear of the pump base and filtration pipes.
• Organized cable routing: Bottom-entry conduits provide a defined route toward the pool equipment.
• Compact installation: The HT-12 enclosure fits into a restricted residential equipment area.

A pool pump distribution box should be selected according to the complete electrical layout rather than only the number of circuit breakers.

Allowing spare internal space makes wiring, cable bending, component identification and future maintenance easier. For projects that may later add pool lighting, heating, timers or water-treatment equipment, additional DIN-rail capacity should be considered during enclosure selection.

BOWO Electric supplies waterproof distribution boxes, junction boxes and electrical enclosure solutions for residential, commercial and industrial applications.

Standard enclosure models are available for different DIN-rail capacities and installation requirements. Project customization can also include cable-entry holes, gland positions, internal rails, terminals, product markings and packaging requirements.

To select a waterproof distribution box for a pool pump or other outdoor equipment, send BOWO the following information:

• Required enclosure dimensions
• Number of DIN-rail modules
• Internal component list
• Cable and conduit dimensions
• Required cable-entry positions
• Installation environment
• Project quantity
• Electrical drawing or installation photograph

Contact BOWO Electric to discuss the enclosure size, internal arrangement and cable-entry configuration for your pool equipment project.

Can an IP65 distribution box be installed beside a swimming pool?

Yes. An IP65 distribution box can be installed in a suitable pool equipment area when it is positioned outside prohibited electrical zones, mounted above areas where water may collect and fitted with correctly sealed cable entries. The final installation must comply with the swimming pool electrical regulations applicable to the project location.

Does a pool pump distribution box include circuit breakers?

The enclosure and electrical components may be supplied separately or as part of a customized assembly. The required circuit breakers, residual-current devices, contactors and timers depend on the pool pump load, supply voltage, control method and local electrical requirements.

Why is a transparent cover useful on a pool equipment distribution box?

A transparent cover allows technicians and property owners to view breaker positions and identify a tripped circuit without immediately opening the enclosure. This supports faster inspection while helping keep the internal electrical components protected from dust, moisture and accidental contact during routine pool maintenance.

Why are cables often routed through the bottom of an outdoor distribution box?

Bottom cable entry reduces the direct exposure of openings to rainfall and cleaning splash. It also allows cables and conduits to follow a short downward route toward pumps and filtration equipment. Correctly sized glands or conduit adapters are still required to maintain the intended enclosure protection.

How many DIN-rail modules are needed for a pool pump system?

The required capacity depends on the number and width of the breakers, residual-current devices, contactors, timers and control relays. The enclosure should also include spare space for wiring, cable bending and future circuits. A complete component list should be prepared before selecting the distribution-box size.

Can one distribution box control the pool pump, lighting and heater?

Yes, one distribution box may accommodate protection and control devices for the pool pump, lighting, heater and treatment equipment when the enclosure has sufficient capacity and the circuits are correctly designed. Each load must have suitable protection, cable sizing and isolation according to the electrical design.
